Technology is introduced

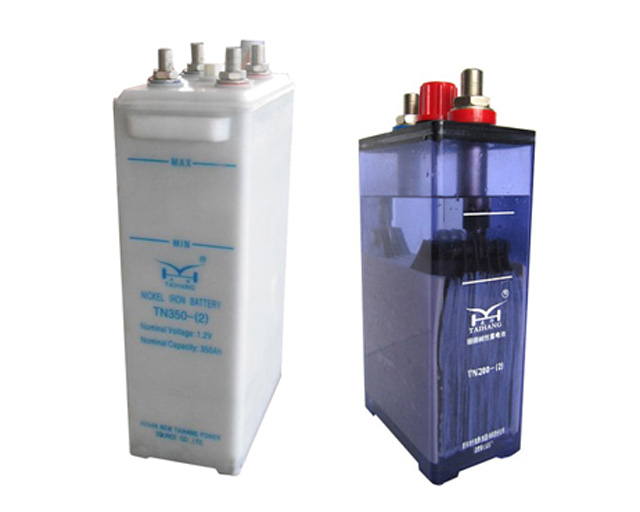

A bag storage battery is nickel hydroxide, iron, nickel as anode, active iron powder as the cathode, sodium hydroxide or potassium hydroxide solution for alkaline battery electrolyte. Biggest characteristic is to the environment without any pollution, green environmental protection, all the material can be 100% recovery, the battery has the firm structure, easy maintenance, corrosion resistance is small, large capacity long life characteristics, can charge and discharge cycle more than 2000 times.
Second, the series are widely used in energy storage battery: in the field of solar energy, wind power equipment form a complete set of energy storage power use, power control, communications base station and lighting use, the batteries are widely used mine electric locomotive power supply, battery handling vehicles, electric forklift, etc.
產品規(guī)格：
型號 Models | 額定電壓 Nominal Voltage (V ) | 額定容量 Rated Capacity （Ah） | 最大外形尺寸 Dimension（mm） | 重量Weight （kg） | 極柱螺紋 | 殼體材料 | 循環(huán)壽命 | 國外型號 | ||
長（L） | 寬(W) | 高(H) | ||||||||
TN10-(2) | 1.2 | 10 | 85 | 39 | 126 | 0.66 | M5 | ABS | ≥900次 | — |
TN30-(2) | 1.2 | 30 | 145 | 54 | 248 | 2.3 | M10×1 | ABS | ≥900次 | — |
TN40-(2) | 1.2 | 40 | 145 | 54 | 248 | 2.5 | M10×1 | ABS | ≥900次 | — |
TN45-(2) | 1.2 | 45 | 142 | 67 | 223 | 2.7 | M10×1 | ABS | ≥900次 | — |
TN50-(2) | 1.2 | 50 | 142 | 67 | 223 | 3.2 | M10×1 | ABS | ≥900次 | — |
TN60-(2) | 1.2 | 60 | 136 | 51 | 368 | 3.9 | M10×1 | PP | ≥900次 | — |
TN80-(2) | 1.2 | 80 | 139 | 79 | 361 | 6.0 | M10×1 | ABS | ≥900次 | — |
TN100-(2) | 1.2 | 100 | 141 | 80 | 365 | 6.5 | M16 | ABS | ≥900次 | — |
TN150-(2) | 1.2 | 150 | 167 | 162 | 343 | 13 | M20×1.5 | ABS | ≥900次 | — |
TN200-(2) | 1.2 | 200 | 167 | 162 | 343 | 14 | M20×1 | ABS | ≥900次 | — |
TN250-(2) | 1.2 | 250 | 277 | 139 | 420 | 20 | M16 | PP | ≥900次 | — |
TN300-(2) | 1.2 | 300 | 277 | 139 | 450 | 17.5 | M16 | PP | ≥900次 | — |
TN350-(2) | 1.2 | 350 | 277 | 139 | 450 | 22 | M16 | PP | ≥900次 | — |
TN400-(2) | 1.2 | 400 | 176 | 161 | 535 | 20 | M20×1.5 | ABS | ≥900次 | — |
TN450-(2) | 1.2 | 450 | 291 | 174 | 505 | 22 | M20×1.5 | ABS | ≥900次 | — |
TN500-(3) | 1.2 | 500 | 291 | 174 | 505 | 24 | M20×1.5 | ABS | ≥900次 | — |
TN600-(2) | 1.2 | 600 | 291 | 174 | 505 | 30 | M20×1.5 | ABS | ≥900次 | — |
